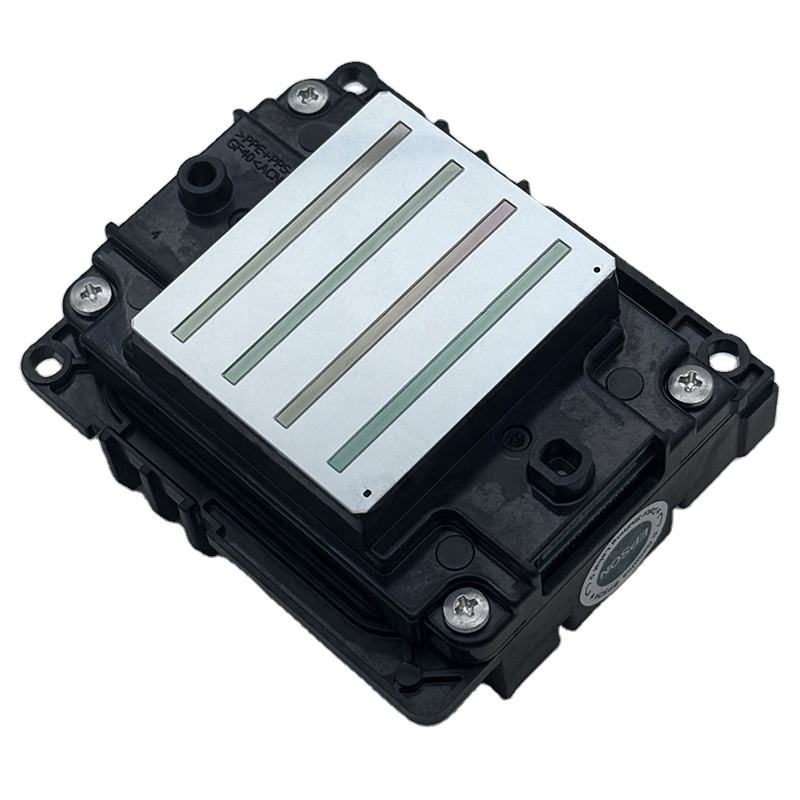

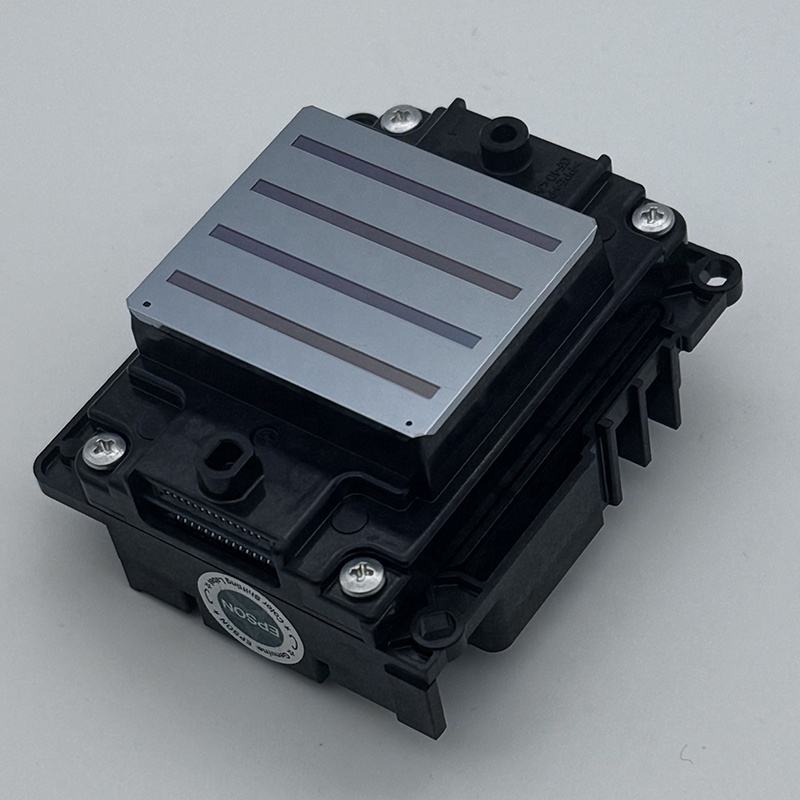

Epson E1 (i3200/i1600) Inkjet Printhead | Printhead for Industrial Printing

Thumbnail 1 Thumbnail 2 Thumbnail 3
Product

PRODUCT DESCRIPTION

PrecisionCore Printhead for High-Quality Industrial & Commercial Printing

The Epson E1 Inkjet Printhead is a high-quality industrial printhead engineered to deliver consistent print quality, smooth grayscale output, and long-term reliability. Built using Epson’s advanced PrecisionCore MicroTFP technology, the E1 printhead ensures accurate ink droplet placement, stable ink ejection, and high-resolution printing for demanding industrial and commercial printing applications.

Epson E1 Printhead: Important Features

PrecisionCore Technology

MEMS and thin-film piezo technology provide high nozzle density, compact design, and precise control over ink droplet size.

High-Resolution Printing

Prints at a resolution of up to 600 dpi per color, delivering clear text, thin lines, and detailed industrial graphics.

Supports Grayscale Printing

Variable Sized Droplet Technology (VSDT) enables smooth grayscale transitions and improved image depth.

Industrial-Grade Reliability

Designed for continuous operation with a long lifespan in high-volume industrial printing environments.

Consistent Ink Droplet Ejection

Optimized ink flow paths ensure consistent ink droplet ejection and high-quality printing even at high speeds.

Technical Specifications

Specification I3200-E1 I1600-E1
Product Type PrecisionCore MicroTFP Inkjet Printhead
Ink Type Aqueous
Number of Nozzles 3200 1600
Nozzle Rows 8 Rows 4 Rows
Nozzle Pitch 1 / 300 inch 1 / 300 inch
Nozzle Resolution 300 npi / row
600 npi / 2 rows 		300 npi / row
600 npi / 2 rows
Max Colors Supported 4 Colors 4 Colors
Effective Print Width 33.8 mm (1.33 inches) 33.8 mm (1.33 inches)
Droplet Control Multi-Level Grayscale (VSDT) Multi-Level Grayscale (VSDT)
Weight Approx. 80 g Approx. 80 g
Dimensions (W × D × H) 69.1 × 59.5 × 35.6 mm 69.1 × 59.5 × 35.6 mm
Ink Recirculation Not Available Not Available
Internal Heater Not Available Not Available
