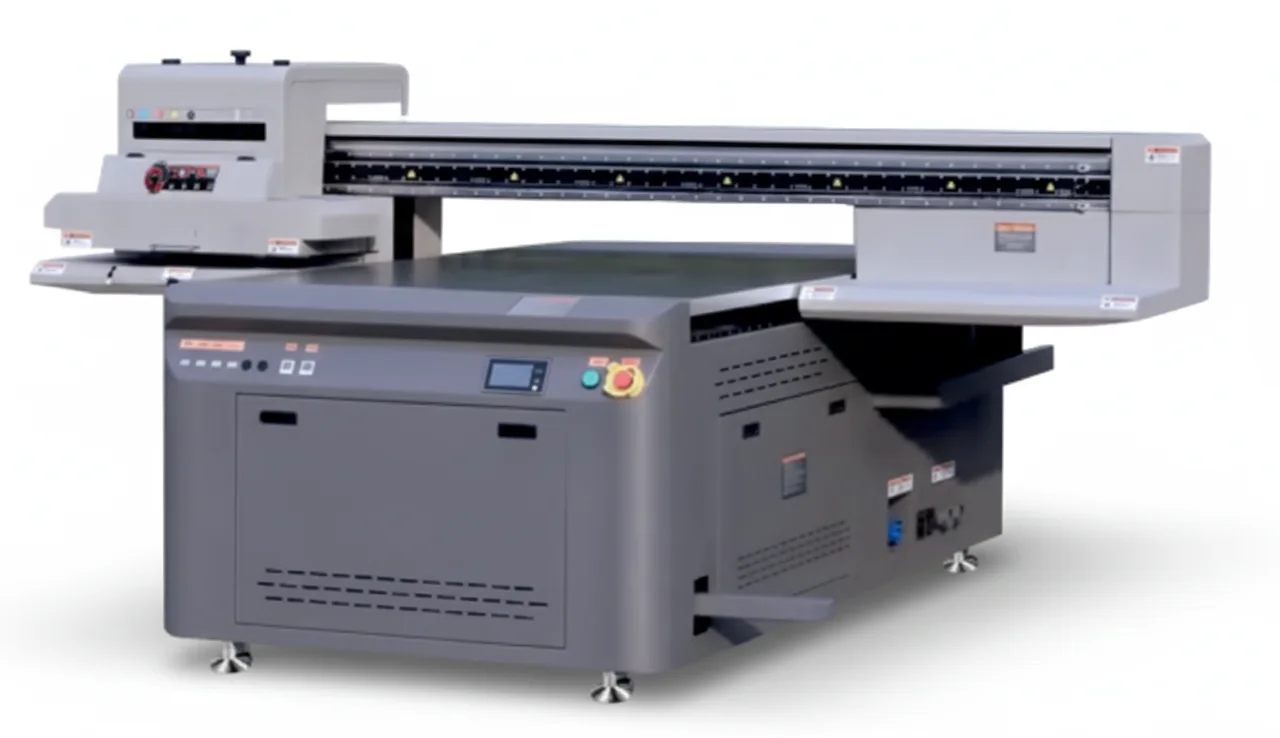

UV Flatbed Printer CG-UV1216
The UV Flatbed Printer CG-UV1216 is a high-performance industrial UV printer engineered for precision printing on rigid and semi-rigid materials. Built with a robust M-bed structure, all-steel integrated body, and a fully enclosed servo motor system, the CG UV printer delivers exceptional printing stability, outstanding accuracy, and reliable long-term performance for commercial printing businesses — making it a dependable UV LED flatbed printer for daily production use.
Featuring a 1200 x 1600 mm flatbed printing area and support for materials up to 150 mm thick (customizable to product height), the UV Flatbed Printer CG-UV1216 can print directly on acrylic, wooden boards, tiles, metal sheets, PVC boards, cardboard, leather, and many other substrates. With Epson I3200CF3 or Ricoh G5/G6 printhead options across a 4-head configuration (White + CMYK + CMYK + Varnish), this UV printer with white ink and UV printer with varnish capability delivers vibrant colours, sharp graphics, and industrial-grade productivity for signage, interior décor, promotional products, customized gifts, and industrial printing applications.
Key Features of UV Flatbed Printer CG-UV1216
✔ Large 1200 × 1600 mm Printing Area
The UV Flatbed Printer CG-UV1216 offers a spacious printing area, making it ideal for signage, promotional products, furniture panels, and customized industrial printing.
✔ Epson I3200CF3 / Ricoh G5-G6 Printhead Options
Choose from Epson I3200CF3 or Ricoh G5/G6 printheads across a 4-head configuration for excellent print quality and industrial productivity.
✔ CMYK + White + Varnish Printing
Produce vibrant colours, opaque white layers, and premium gloss effects with UV-curable inks.
✔ LED UV Instant Curing
Advanced LED UV curing technology dries prints instantly, reducing production time while improving durability.
✔ Print on Multiple Materials
Print directly on acrylic, wooden boards, tiles, metal sheets, PVC boards, cardboard, and leather with exceptional colour accuracy.
✔ Robust M-Bed & All-Steel Body
A reinforced M-bed structure and all-steel integrated body with fully enclosed servo motors ensures long-term stability and accuracy.

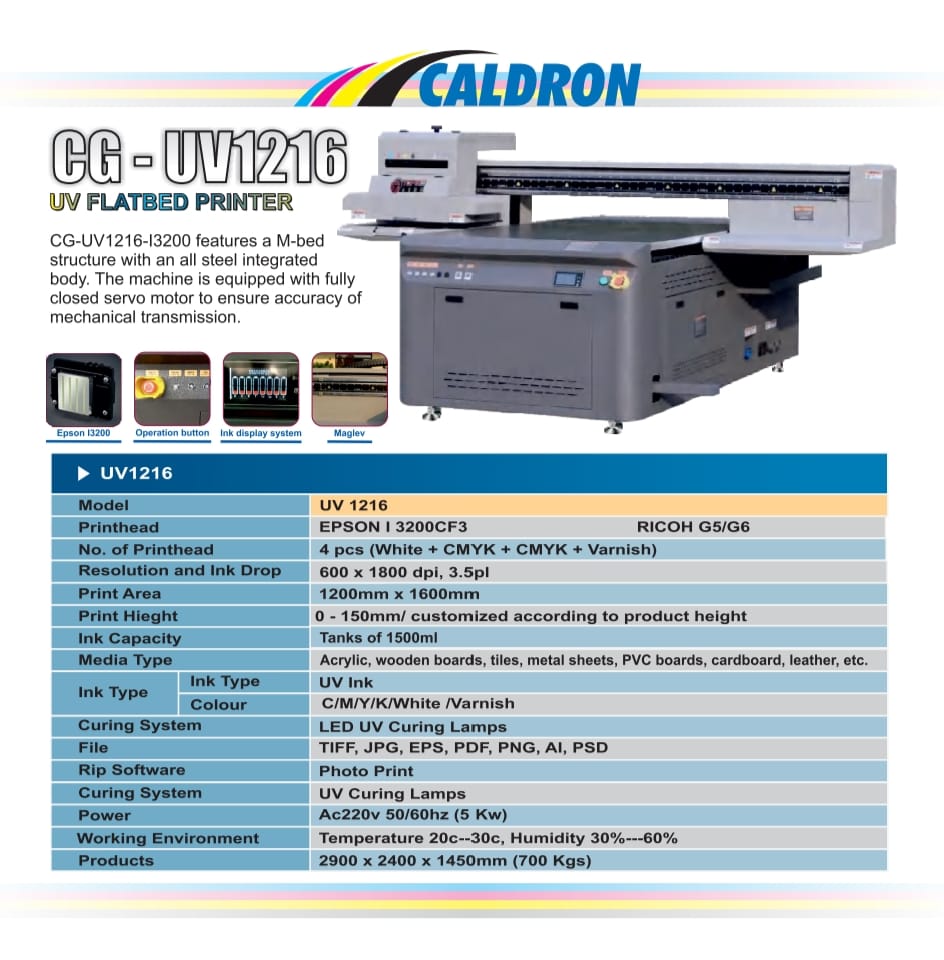

UV Flatbed Printer CG-UV1216 Specifications
| Model | UV 1216 |
|---|---|
| Printer Type | Industrial UV LED Flatbed Printer |
| Printhead Options | Epson I3200CF3, Ricoh G5/G6 |
| No. of Printheads | 4 pcs (White + CMYK + CMYK + Varnish) |
| Printing Area | 1200mm x 1600mm |
| Print Height | 0 - 150mm / customized according to product height |
| Resolution and Ink Drop | 600 x 1800 dpi, 3.5pl |
| Ink Type | UV Ink |
| Ink Colours | C / M / Y / K / White / Varnish |
| Ink Capacity | Tanks of 1500ml |
| Curing System | LED UV Curing Lamps |
| Bed Structure | M-Bed Structure, All-Steel Integrated Body |
| Motor System | Fully Enclosed Servo Motor for Accurate Mechanical Transmission |
| Supported File Formats | TIFF, JPG, EPS, PDF, PNG, AI, PSD |
| RIP Software | Photo Print |
| Power | AC220V 50/60Hz (5 kW) |
| Working Environment | Temperature 20°C - 30°C, Humidity 30% - 60% |
| Machine Dimensions & Weight | 2900mm x 2400mm x 1450mm (700 kg) |
| Supported Materials | Acrylic, Wooden Boards, Tiles, Metal Sheets, PVC Boards, Cardboard, Leather, and More |
| Applications | Signage, Promotional Products, Interior Décor, Industrial Printing, Packaging, Furniture Panels, Customized Gifts and Retail Displays |
