Product Description

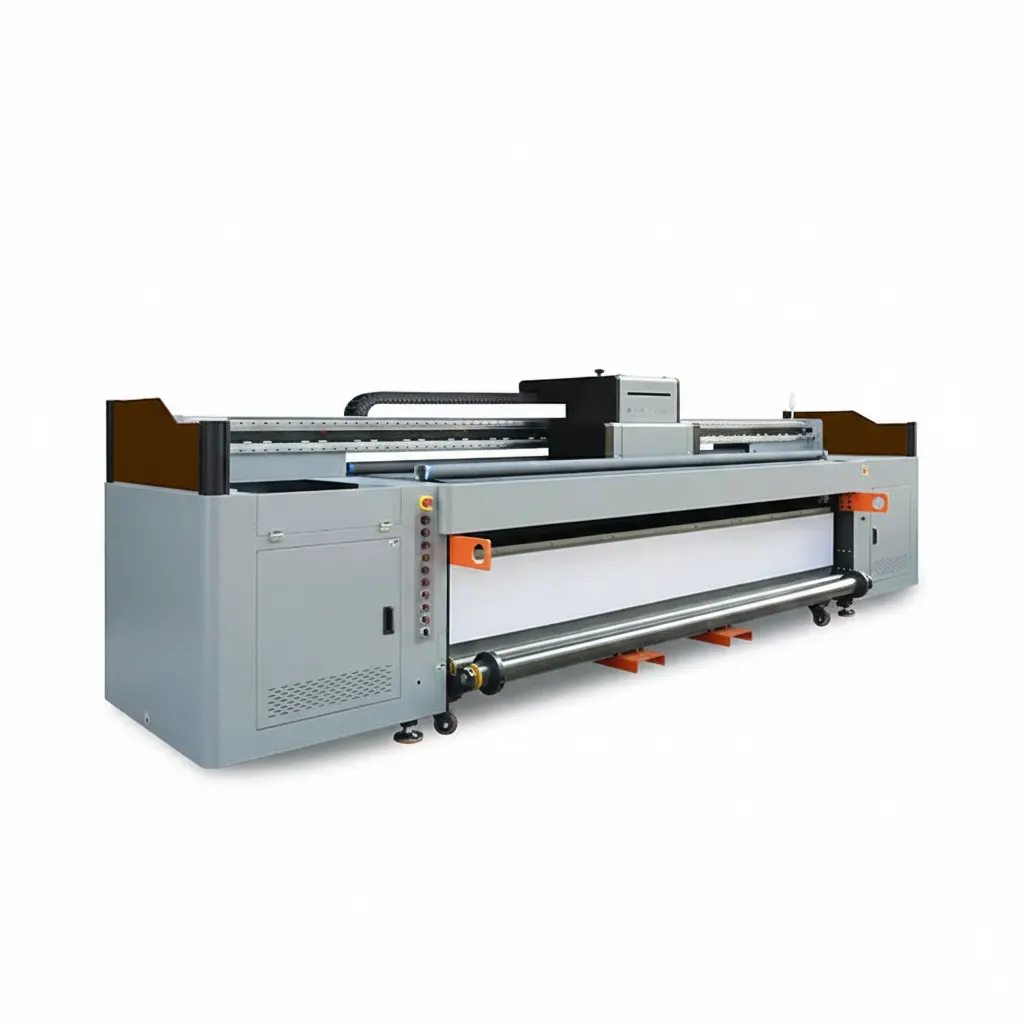

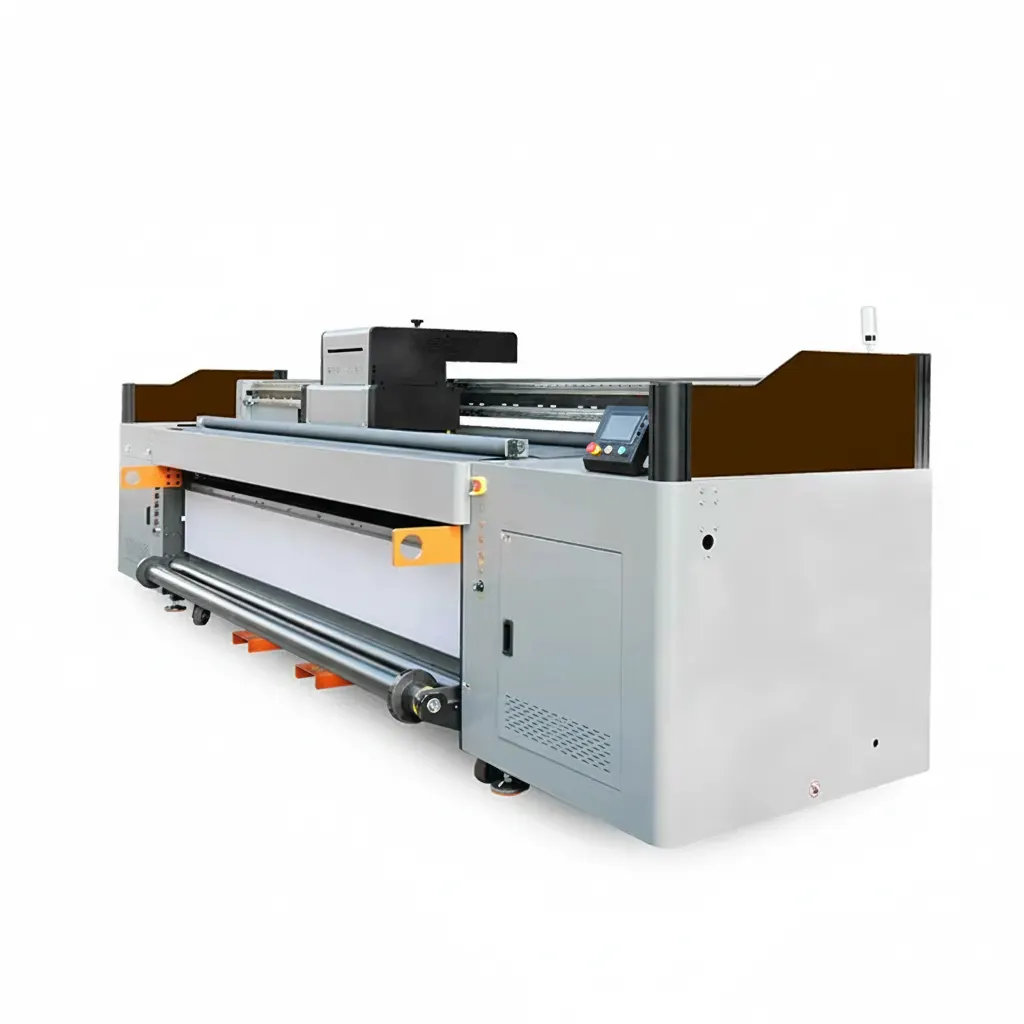

Caldron UV Hybrid Printer CJRM5200
The Caldron UV Hybrid Printer CJRM5200 is a heavy-duty 5-meter industrial UV hybrid printer designed for businesses that require high-speed production, exceptional print quality, and maximum versatility. The Caldron UV Hybrid Printer CJRM5200 combines the benefits of both roll-to-roll printing and rigid media printing in a single machine, making it an ideal solution for signage manufacturers, advertising agencies, exhibition companies, and industrial printing businesses. :contentReference[oaicite:0]{index=0}
Powered by industrial-grade Seiko SPT RC1536 printheads, the Caldron UV Hybrid Printer CJRM5200 delivers sharp text, vibrant colours, smooth gradients, and reliable long-term performance. With support for banners, vinyl, backlit films, PP media, outdoor materials, and rigid boards, the Caldron UV Hybrid Printer CJRM5200 enables businesses to handle a wide range of applications with a single production system. Production speeds can reach up to 2580 sq.ft/hr, making the Caldron UV Hybrid Printer CJRM5200 a powerful solution for high-volume printing environments. :contentReference[oaicite:1]{index=1}
Key Features of Caldron UV Hybrid Printer CJRM5200
✔ 5 Meter UV Hybrid Printing System
The Caldron UV Hybrid Printer CJRM5200 supports both flexible roll media and rigid materials, providing maximum production flexibility.
✔ Seiko SPT RC1536 Industrial Printheads
Equipped with Seiko RC1536 printheads featuring 13PL technology for high-speed production and exceptional image quality.
✔ High Production Speed
The Caldron UV Hybrid Printer CJRM5200 can achieve production speeds up to 2580 sq.ft/hr, making it suitable for large-scale commercial printing.
✔ CMYK + Light Colors + White Ink
Supports KCMY, Light Cyan, Light Magenta, and White Ink for vibrant colours, smooth gradients, and premium print quality.
✔ UV LED Curing Technology
Advanced UV curing ensures instant drying, improved durability, scratch resistance, and faster production turnaround.

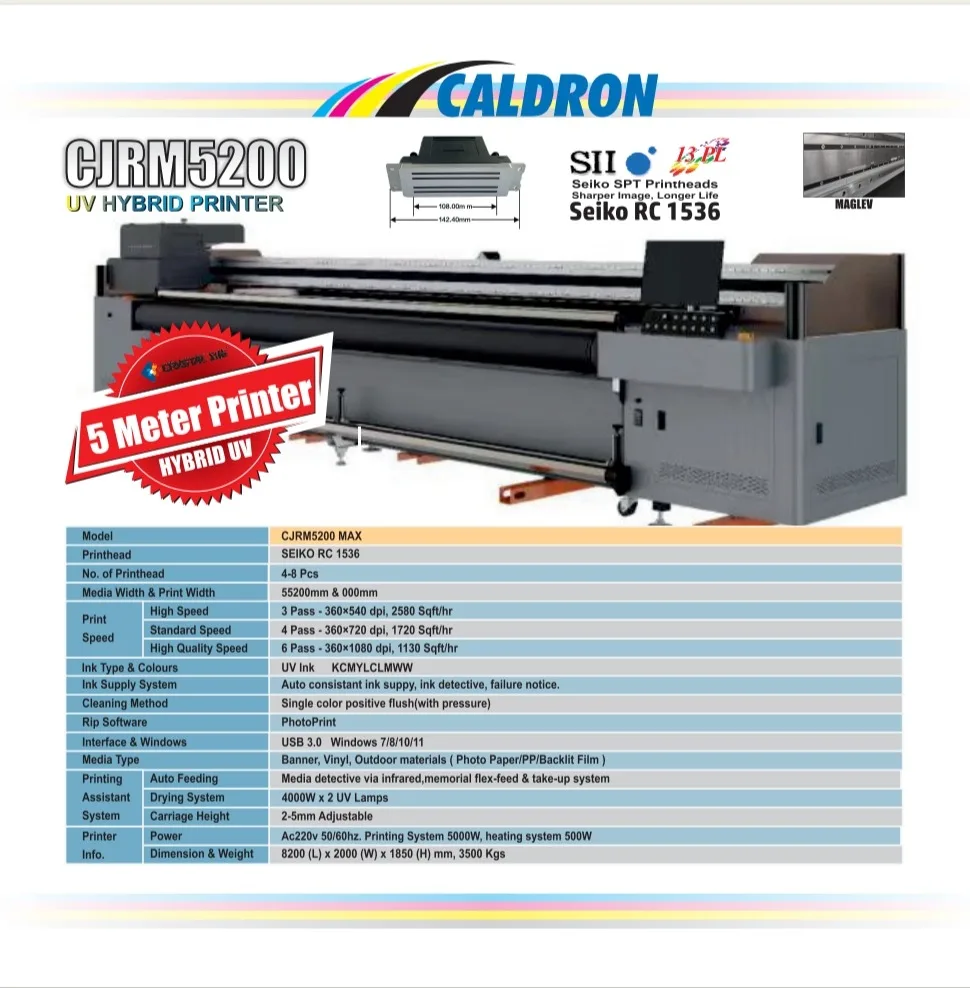

Caldron UV Hybrid Printer CJRM5200 Specifications
| Product Name | Caldron UV Hybrid Printer CJRM5200 |
|---|---|
| Printer Type | Industrial UV Hybrid Printer |
| Print Width | 5.2 Meter UV Hybrid Printing System |
| Printhead | Seiko SPT RC1536 Industrial Printhead |
| Number of Printheads | 4 – 8 Printheads |
| Maximum Speed | Up to 2580 Sq.ft/hr |
| Resolution Modes | 360×540 dpi, 360×720 dpi, 360×1080 dpi |
| Ink Configuration | KCMY + LC + LM + White UV Ink |
| Media Type | Banner, Vinyl, PP, Backlit Film, Outdoor Media, Flexible & Rigid Materials |
| RIP Software | PhotoPrint |
| Interface | USB 3.0 |
| Operating System | Windows 7 / 8 / 10 / 11 |
| UV Lamps | 4000W × 2 UV Curing Lamps |
