Seiko 508GS Printhead | SPT-1020/12pl Print Head for Industrial Inkjet Printers
Product Description

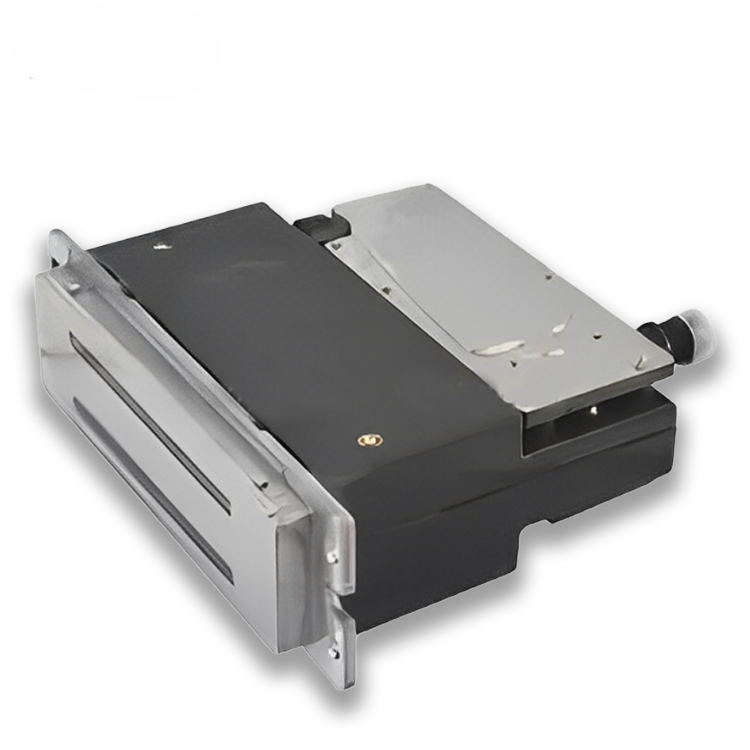

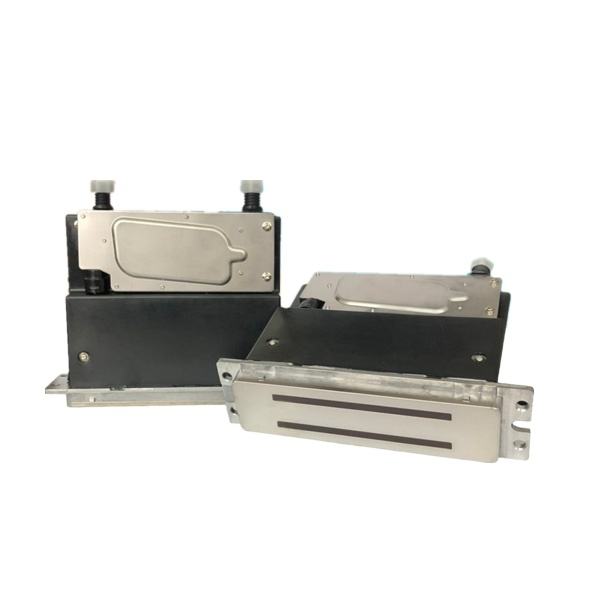

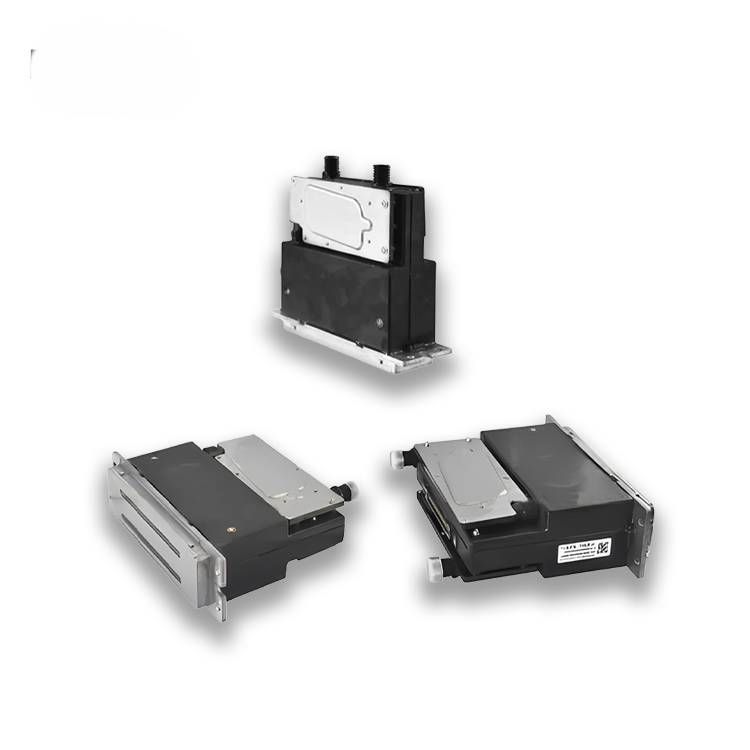

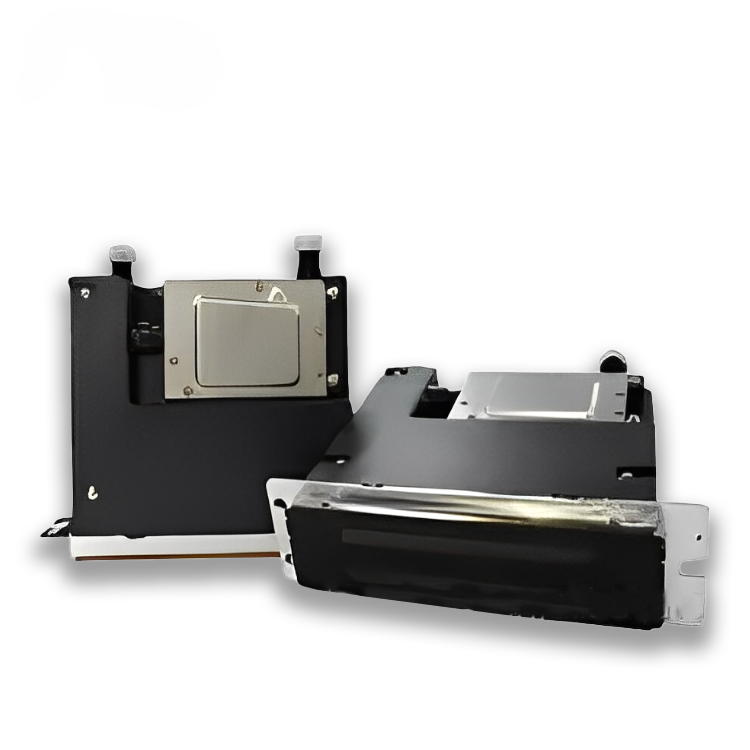

Seiko 508GS Printhead – Product Information
The Seiko 508GS Printhead is a reliable industrial inkjet printhead designed for consistent performance and long service life. Manufactured by Seiko Instruments in Japan, it delivers accurate ink droplet control for high and stable print quality. This SPT-1020/12pl printhead is a grayscale design with a built-in damper assembly and nozzle guard, available as the original Seiko part number IRH2533 (and the earlier IRH2513 generation).
Compatible with solvent, UV, and water-based inks, the 508GS printhead is built for continuous use and is widely used in commercial and industrial inkjet printhead systems. The IRH2533U printhead is the replacement for IRH2513 printheads using UV and solvent inks, while the water-based variant is the replacement for IRH2513 printheads running aqueous fluids. It suits a wide range of large-format printers including Infiniti Challenger, CrystalJet 6000 Series, Icontek, and Kerajet K700 platforms.
Key Features of Seiko 508GS Printhead
✔ Industrial-Grade Reliability
Designed for high-volume production with low maintenance requirements and maximum operational uptime.
✔ Excellent Print Coverage
508 nozzles across a wide 72mm active print width, with drop volumes up to 7 x 12pl for flexible print quality.
✔ Wide Ink Compatibility
Available in solvent/UV and water-based variants, allowing easy integration with a wide range of industrial printing systems.
✔ High Firing Frequency
Operates at up to 18 kHz (and multiples), enabling fast, smooth, and consistent printing at high production speeds.
✔ Stable Print Resolution
Native resolution of 180 dpi with effective performance up to 720 dpi, delivering sharp text and clear graphics.
✔ Non-Wetting Nozzle Plate & Built-In Damper
Built-in damper assembly and nozzle guard with a non-wetting nozzle plate for durability and consistent performance.
Seiko 508GS Printhead Technical Specifications
| Specification | 508GS Solvent / UV (Green Label) | 508GS Water Based (Blue Label) |
|---|---|---|
| Part Number | IRH2533U | IRH2533U (Aqueous variant) |
| Ink Type | Solvent & UV | Aqueous (Water Based) |
| Weight | 0.63 kg | 0.63 kg |
| Number of Nozzles | 508 | 508 |
| Active Print Width | 72 mm | 72 mm |
| Nozzle Plate | Non-Wetting | Non-Wetting |
| Physical Resolution | 180 dpi | 180 dpi |
| Firing Frequency | 18 kHz (and multiples) | 18 kHz (and multiples) |
| Drop Volume | Multiple of 12pl (up to 7 drops) | Multiple of 12pl (up to 7 drops) |
| Country of Origin | Japan | |
| Compatible Printers | CrystalJet 6000 Series, Crystek X5300, Forni HS1804, Icontek TW-1800J3, Icontek TW-3200F3, Icontek TW-3308HG, Icontek TW-3308MG, Infiniti Challenger FY-3208GS, Infiniti Challenger FY-3208T, Infiniti Challenger FY-3266T, Infiniti Challenger FY-3286T, Kerajet K700, Leyenda 1800T3, Leyenda 3200F3, Nuocai NC-SPT2531, OraJet J18, Dupont ICHINOSE Artistri 3320 | |
*Nozzle count corrected to 508 across both variants — the source data listed 580 nozzles in one table and 510 in the feature summary, but every independent supplier listing for the IRH2533/IRH2513 series (AllPrintHeads, DigiPrint, Mitra Print, PrintHeadParts) confirms 508 nozzles.
