Product Description

Ceramic Printer KT1500 — industrial ceramic printing machine with SEIKO RC1536 heads, 28 channels, 8G memory, 1500×3000mm big slab print area, 130ml/min ink circulation. Best large format ceramic printer for big slab tiles, floor tiles, glaze effect inks and factory production.

Ceramic Printer KT1500 | Industrial Ceramic Printing Machine & Large Format Printer

The Ceramic Printer KT1500 is not a small-format machine adapted for tiles — it is a full industrial ceramic printing machine engineered from the ground up for high-volume factories that print big slabs, floor tiles, wall tiles, and decorative ceramic surfaces at scale. With a 1500mm × 3000mm printing area, up to 28 ink channels, and SEIKO RC1536 / RC1536L printheads, this ceramic printer is built as a true large format printer and wide format printer for the biggest tiles in the market. If your factory is upgrading from screen printing to digital, or you are expanding an existing digital printing equipment lineup beyond flex printing, flex printing machines, or a printer for vinyl into high-margin ceramic production, the KT1500 is the industrial-grade step up.

What separates the KT1500 from smaller ceramic printing machines is the processing power and ink management. An upgraded 833MHz dual-core Cortex-A9 CPU with Intel Cyclone® V SoC FPGA and 8G memory handles the massive image files that big slab production demands. Sixteen-level greyscale processing, independent CPU control on each printhead board, and a high-flow closed-loop ink circulation system running at 130ml/min with water bath heating keep colour consistent even on dark tile designs and heavy glaze-effect inks above 45g/sqm. With 360 DPI native resolution, adjustable drop size from 14~98pl (up to 13~133pl), 37 kHz firing frequency, and 1-second production changeover, this ceramic printing machine is designed for continuous single-pass production where downtime costs thousands per hour. It operates reliably from 0°C to 85°C and supports print on demand custom tiles alongside high-volume standard runs — making it a versatile large format printer for modern tile manufacturing plants.

Key Advantages of Ceramic Printer KT1500

✔ Upgraded 8G Memory & Dual-Core CPU

833MHz dual-core Cortex-A9 processor with Intel Cyclone® V SoC FPGA and 8G memory handles the large image files that big slab ceramic printing demands — no stuttering, no dropped data on complex designs.

✔ SEIKO RC1536 / RC1536L Printheads

Industrial SEIKO heads with 108mm print width per head, drop sizes from 13pl for fine detail to 133pl for heavy glaze coverage, and four selectable drive waveforms. Built for the abrasive, heavy-pigment environment of ceramic printing.

✔ 1500×3000mm Big Slab Printing Area

A 1500mm × 3000mm print area with a 1550mm belt handles the largest ceramic slabs on the market. As a large format printer for ceramics, the KT1500-28 prints big slabs in a single pass — no拼接, no weak seams.

✔ 28-Channel Ink System

Up to 28 ink channels with 16-level greyscale processing support extended colour gamuts, special-effect inks, and heavy cover inks simultaneously. For a ceramic printing machine serving a factory floor, this means fewer ink swaps between product lines.

✔ 130ml/min High-Flow Ink Circulation

Closed-loop circulation at 130ml/min with water bath heating keeps ceramic inks at stable temperature and viscosity. This is 35% more stable than standard systems — critical for glaze-effect and cover inks above 45g/sqm on dark tile designs.

✔ 1-Second Changeover & Smart Compensation

Production change within 1 second, injector blockage compensation, and colour difference adjustment from -100% to +100% keep output stable during continuous factory operation. When your ceramic printer runs 24/7, these details directly affect yield and waste.

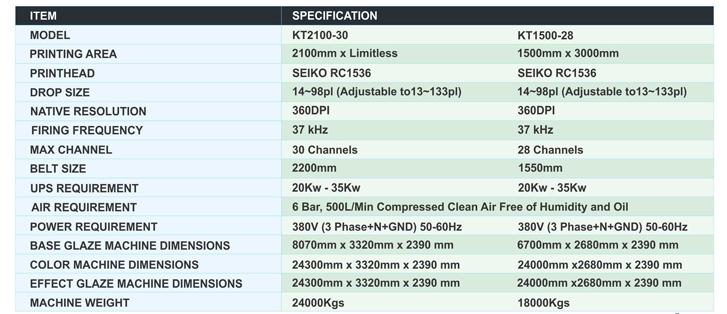

Ceramic Printer KT1500 / KT2100 Technical Specifications

Model KT1500-28 / KT2100-30
Printing Area 1500mm × 3000mm (KT1500-28) / 2100mm × Limitless (KT2100-30)
Printhead SEIKO RC1536
Drop Size 14~98pl (Adjustable to 13~133pl)
Native Resolution 360 DPI
Firing Frequency 37 kHz
Max. Channels 28 Channels (KT1500-28) / 30 Channels (KT2100-30)
Belt Size 1550mm (KT1500-28) / 2200mm (KT2100-30)
UPS Requirement 20 kW – 35 kW
Air Requirement 6 Bar, 500 L/Min Compressed Clean Air (Free of Humidity and Oil)
Power Requirement 380V (3 Phase + Neutral + Ground) 50–60Hz
Base Glaze Machine Dimensions 6700 × 2680 × 2390 mm
Color Machine Dimensions 24000 × 2680 × 2390 mm
Effect Glaze Machine Dimensions 24000 × 2680 × 2390 mm
Machine Weight 18,000 kg (KT1500-28) / 24,000 kg (KT2100-30)
Processor / Memory 833MHz Dual-Core Cortex-A9 CPU, Intel Cyclone® V SoC FPGA, 8G Memory
Greyscale Processing 16 Levels
Ink Circulation 130 ml/min High-Flow Closed-Loop with Water Bath Heating
Operating Temperature 0°C – 85°C
Technology Single-Pass Digital Ceramic Inkjet Printing System
Applications Big Slab Ceramic Tile Printing, Floor & Wall Tile Decoration, Glaze Effect & Cover Ink Production, Print on Demand Ceramic Designs, Large Format Industrial Ceramic Printing

*Printing area, channels, belt size, and machine weight vary by model (KT1500-28 / KT2100-30); all other specifications are shared across both models. Specifications as per product datasheet.

Ceramic Printer KT1500 Compatible Materials & Applications

Material / Use Case Applications
Big Slab Ceramic Tiles Large format floor slabs, wall slabs, and oversized decorative ceramic panels up to 1500×3000mm
Floor & Wall Tiles High-volume ceramic tile decoration for residential and commercial interiors
Glaze Effect & Cover Inks Heavy ink coverage above 45g/sqm for dark designs, glaze effects, and cover layers
Print on Demand Tiles Custom ceramic designs, short runs, and sample production without traditional screens
Industrial Ceramic Lines Continuous single-pass ceramic inkjet printing for large tile manufacturing plants
Decorative Ceramic Surfaces Marble, wood, stone, and artistic effects on wide format ceramic substrates
Digital Print Expansion For businesses moving from flex printing, flex printing machines, or vinyl print workflows into industrial ceramic production

Ceramic Printer KT1500 FAQ

The ceramic printer KT1500 is an industrial ceramic printing machine used for single-pass digital decoration of big slab tiles (up to 1500×3000mm), floor tiles, wall tiles, and decorative ceramic surfaces. It handles heavy glaze-effect inks, cover inks above 45g/sqm, and custom print on demand tile designs. As a large format printer and wide format printer for ceramics, it is built for continuous production in tile manufacturing plants — not for small-scale or occasional use.

The difference is width, channels, and scale. The KT1500-28 has a 1500×3000mm printing area, a 1550mm belt, 28 ink channels, and weighs 18,000 kg. The KT2100-30 has a 2100mm × limitless printing area, a 2200mm belt, 30 ink channels, and weighs 24,000 kg. Both share the same SEIKO RC1536 printheads, 8G memory system, 16-level greyscale processing, 130ml/min ink circulation, 360 DPI resolution, and 37 kHz firing frequency. If your factory prints slabs up to 1.5 metres wide, the KT1500-28 ceramic printer is sufficient. If you need to print slabs wider than 1.5 metres or run continuous production on extra-wide formats, the KT2100-30 is the bigger ceramic printing machine in the same large format printer platform.

Both use inkjet technology, but the inks, substrates, and finishing processes are completely different. Flex printing uses solvent or eco-solvent inks on PVC-based media — the print is finished when it comes off the flex printing machines (maybe with lamination or cutting). Ceramic printing uses mineral-based ceramic inks containing glass frits and metal oxides. The print goes onto a raw or glazed tile, but the colour does not permanently bond until the tile is fired in a kiln at 800–1200°C. The ceramic printer is just the first step; the kiln is what locks the design into the tile surface permanently. Another key difference: ceramic inks are heavier, more abrasive, and more viscous than flex inks. That is why the KT1500 uses high-flow ink circulation at 130ml/min with water bath heating — standard flex printing ink systems cannot handle ceramic ink viscosity and pigment density. A printer for vinyl or flex printing machine cannot run ceramic inks, and a ceramic printing machine cannot run flex inks. They are complementary technologies for different markets, not interchangeable.

Yes, but the KT1500 is industrial digital printing equipment — it is not a machine you drop into a small shop without preparation. Expanding into ceramic printing requires three things beyond the ceramic printer itself: a kiln capable of 800–1200°C firing (this is non-negotiable — ceramic inks only develop colour after firing), 380V three-phase power with 20–35 kW UPS capacity, and a compressed air system delivering 6 Bar at 500 L/Min with oil-free, dry air. For a printing business that already runs flex printing, flex printing machines, or a printer for vinyl at industrial scale, the infrastructure upgrade is manageable. The revenue opportunity is significant: custom big slab tiles, designer floor tiles, and print on demand ceramic panels command much higher margins than standard flex or vinyl output. The KT1500 as a wide format printer and large format printer for ceramics opens a completely different market — interior designers, architects, real estate developers, and hospitality chains — that does not overlap with your existing signage customers. The key is treating ceramic printing as a new production line, not an add-on to your existing flex workflow.

Big slab tiles create three challenges that smaller ceramic printer models cannot handle: massive image file sizes, heavy ink coverage requirements, and wide-format single-pass printing. The KT1500 addresses all three. The 8G memory system with dual-core CPU and Intel FPGA processes large slab design files without bottlenecking. The 130ml/min high-flow closed-loop ink circulation with water bath heating keeps heavy glaze-effect and cover inks (above 45g/sqm) at stable temperature and viscosity — this is critical for dark tile designs where uneven ink flow shows as banding. The 1500×3000mm print area with a 1550mm belt handles the largest standard slabs in a single pass. Add 16-level greyscale processing for smooth gradients on marble and wood effects, independent CPU control on each printhead board for reliable multi-head ceramic printing, and smart features like 1-second production changeover and injector blockage compensation — and you have a ceramic printing machine built specifically for the demands of big slab production as a large format printer.

Smaller ceramic printer models like the D740-10 are excellent for standard wall and floor tiles up to 740mm or 1170mm width. But if your factory produces big slabs (1200mm, 1500mm, or wider), runs heavy glaze-effect and cover inks, or needs 28+ channels for complex multi-ink designs, the KT1500 is the machine that matches that scale. The 8G memory system, 16-level greyscale, 130ml/min ink circulation, and 1-second changeover are industrial features that smaller machines do not offer. As a wide format printer and large format printer for ceramics, the KT1500-28 handles 1500×3000mm slabs — and the KT2100-30 extends even further. For a tile factory or a large printing business investing in serious ceramic printing capacity, the KT1500 is the ceramic printing machine built for long-term, high-volume production — not a stepping stone you will outgrow in two years.
