Caldron CJ 8000VI High Speed Solvent Printer | 3.2m Wide Format Printer
Product Description

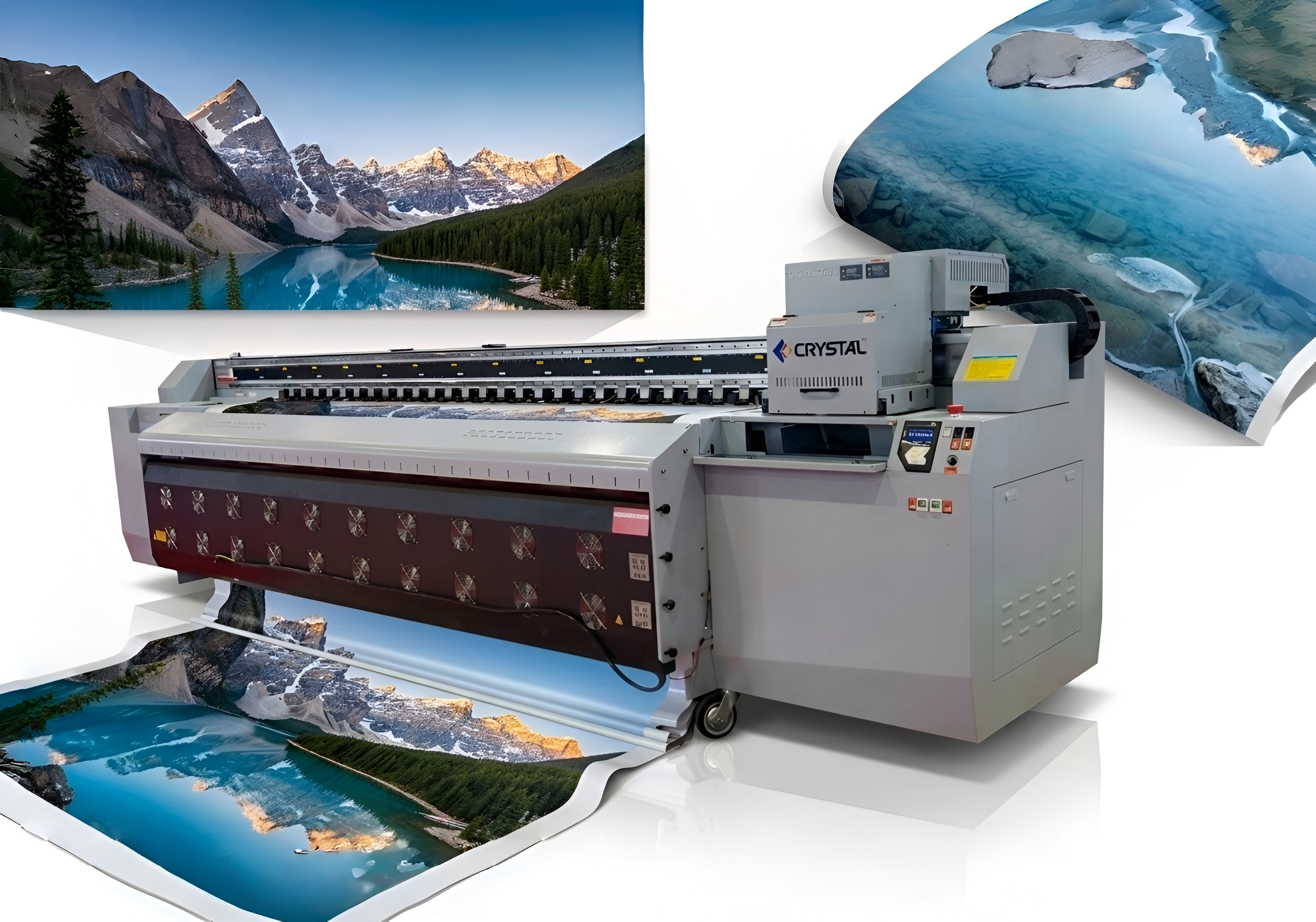

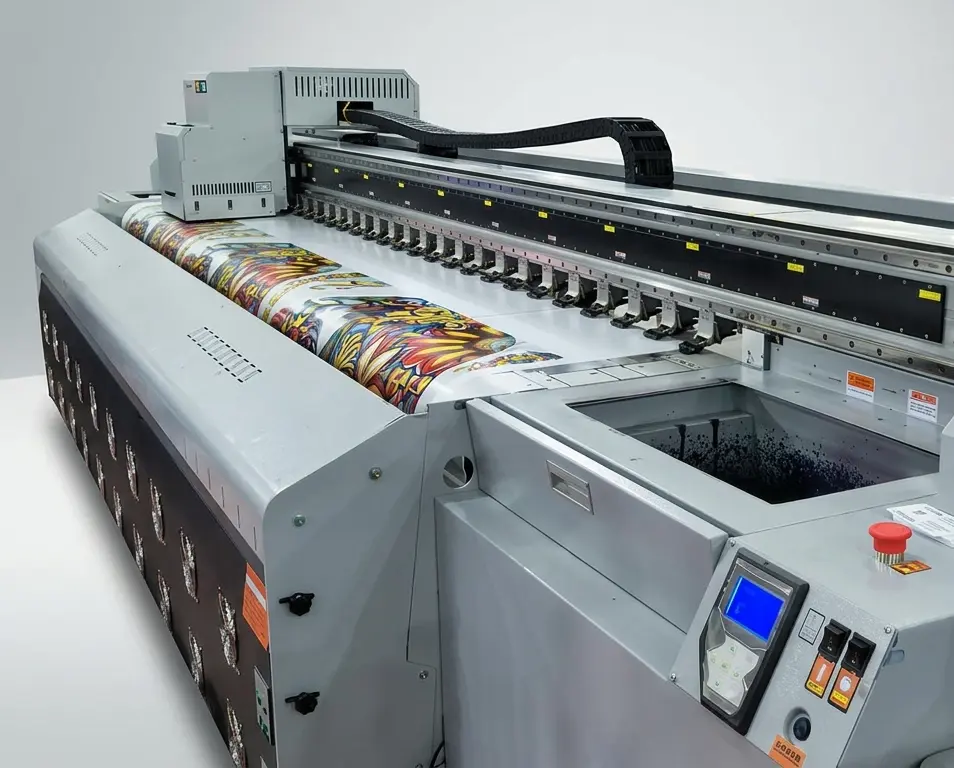

Caldron High Speed Solvent Printer CJ 8000VI
The Caldron CJ 8000VI is a powerful high speed printer designed as a large format printer and wide format printer for businesses that need serious throughput without sacrificing quality. This solvent printer runs solvent and eco solvent inks, and can be configured with Seiko 12PL (8 pieces) or Starfire 25PL (6 pieces) printheads, giving buyers a choice of digital printing equipment to match production speed and budget.
With a 3.2-meter printing size, draft speeds up to 390 m/h, a smart independent colour cleaning and moisture control system, and a full rear, platform, front, and infrared heating and drying setup, the Caldron CJ 8000VI works well as a flex printing machine and printer for vinyl, stickers, gridding cloth, one way vision, wallpaper, and photo paper. Its high output speed also suits print on demand businesses that need to keep large jobs moving fast. For anyone comparing a large format printer for sale, the CJ 8000VI offers two high-capacity printhead choices in one reliable machine.
Key Features of Caldron CJ 8000VI
✔ Two Printhead Options
Choose Seiko 12PL (8 pieces) or Starfire 25PL (6 pieces) printheads to match your speed, quality, and budget needs.
✔ Up to 390 m/h Draft Speed
Draft mode reaches up to 390 m/h with the Starfire 25PL configuration, making the CJ 8000VI a genuine high speed printer for large volume jobs.
✔ Solvent & Eco Solvent Ink Support
Runs both solvent and eco solvent inks in CMYK, giving flexibility for different media and cost requirements.
✔ Smart Independent Colour Cleaning
Smart independent colour cleaning and moisture control keeps printheads healthy and reduces nozzle blockages.
✔ Full Heating & Drying System
Rear preheating, platform heating, front heating, and infrared heating and drying work together for fast, even ink drying, even at high speed.
✔ Roll-to-Roll Feed & Take-Up
Roll to roll feeding system with an optional take-up system supports long, unattended production runs.
Caldron CJ 8000VI Specifications
| Model | CJ 8000VI | |
|---|---|---|
| Printhead | Seiko 12PL (8 pcs) | Starfire 25PL (6 pcs) |
| Printing Size | 3200mm | |
| Speed | Draft Model: 480x360 dpi (2 pass), 240 m/h | Draft Model: 480x360 dpi (2 pass), 390 m/h |
| Standard Model: 480x540 dpi (3 pass), 140 m/h | Standard Model: 480x540 dpi (3 pass), 280 m/h | |
| High Resolution Model: 480x720 dpi (4 pass), 80 m/h | High Resolution Model: 480x720 dpi (4 pass), 190 m/h | |
| Speed Modes | Draft Model / Standard Model / High Resolution Model | |
| Inks | Solvent / Eco Solvent | |
| Colors | CMYK | |
| Cleaning System | Smart independent color cleaning and moisture control | |
| RIP Software | Standard configuration Maintop (PhotoPrint, Onyx optional) | |
| Data Transmission | Gigabit Internet / USB 2.0 / Optical Fiber | |
| Computer System | Windows 7 / 8 / 10 | |
| Photo Format | TIFF, JPG, EPS, PDF | |
| Heating System | Rear preheating, platform heating, front heating, infrared heating and drying | |
| Printhead Height | Precision regulator, 2mm - 5mm adjustable to printing surface | |
| Feeding & Take-Up System | Roll to roll feeding system + take-up system (optional) | |
| Printing Materials | Banner, Sticker, Gridding Cloth, One Way Vision, Wallpaper, Photo Paper, PP | |
| Voltage | AC220V 50/60Hz | |
| Power | Printing system: 1500W, Heating system: 5000W, Infrared drying: 14000W | |
| Working Environment | Temperature 22°C - 28°C, Humidity 40% - 70% RH | |
| Packing Size | 5500mm (L) x 1215mm (W) x 1784mm (H) | |
| Gross Weight (GW) | 850KG ± 15KG | |
| Applications | Outdoor Advertising, Flex Printing, Sign Boards, Sticker Printing, Wallpaper Printing, Vehicle Graphics, Retail Branding, Exhibition Graphics | |
