Caldron CJ 7308 High-Speed Solvent Printer | 3.2m Wide Format Printer
Product Description

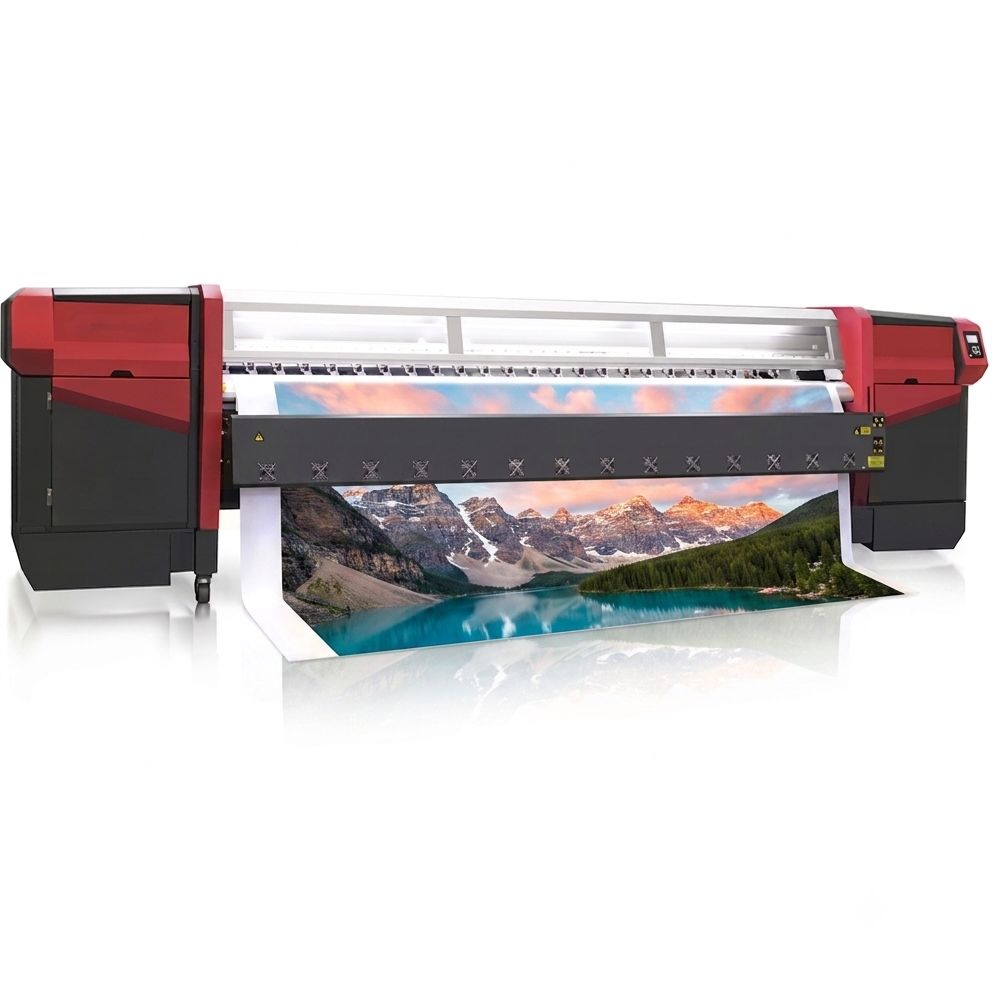

Caldron Solvent Printer CJ 7308 High-Speed
The Caldron CJ 7308 is a top-level production solvent printer built as a large format printer and wide format printer for businesses that need serious speed and industrial reliability. This machine can hold 2 Seiko RC1536 heads, 4 Seiko 1024HG Alfa heads, or 8 Seiko 508GS-12PL industrial printheads, giving buyers a choice of digital printing equipment to match production speed and budget.
With 1440 dpi high resolution, a staggered printhead configuration for high speed, a rugged heavy-duty body structure for stable output, and additional infrared heaters with drying fans for fast drying, the Caldron CJ 7308 works well as a flex printing machine and printer for vinyl, banners, photo paper, PP, and backlit film. Its combination of speed and consistent output suits print on demand businesses that must deliver high quality and volume in short, demanding timeframes. For anyone comparing a large format printer for sale, the CJ 7308 offers three printhead choices in one dependable machine.
Key Features of Caldron CJ 7308
✔ Three Printhead Options
Choose 2x Seiko RC1536, 4x Seiko 1024HG Alfa 25pl, or 8x Seiko 508GS-12PL printheads to match your speed, quality, and budget needs.
✔ Up to 2,800 Sqft/hr Speed
High speed mode reaches up to 2,800 Sqft/hr with the Seiko Alfa printhead configuration, making the CJ 7308 a true high speed printer for large volume jobs.
✔ Staggered Printhead Configuration
1440 dpi high resolution with a staggered printhead layout delivers high speed output without sacrificing print quality.
✔ Auto Consistent Ink Supply
Auto consistent ink supply with ink detective and failure notice keeps production running with minimal downtime.
✔ Full Heating & Drying System
Preheating, middle heating, front heating, front drying fans, and infrared heaters work together for fast, even ink drying at high speed.
✔ Rugged Heavy-Duty Body
A rugged heavy-duty body structure guarantees stable output at high speed, built for demanding, high-volume production environments.
Caldron CJ 7308 Specifications
| Model | CJ 7308 | ||
|---|---|---|---|
| Printhead | Seiko RC1536 | Seiko SPT1024HG Alfa 25pl | Seiko SPT508_12pl GS |
| No. of Printhead | 2 Pcs | 4 Pcs | 8 Pcs |
| Printhead Sequency | 1x2 | 2x2 | 2x4 |
| Print Width | 3220mm / 126.77 inch | 3220mm / 126.77 inch | 3220mm / 126.77 inch |
| Media Width | 3280mm / 129.13 inch | 3280mm / 129.13 inch | 3280mm / 129.13 inch |
| Print Speed | High Speed: 480x360 dpi, 2,050 Sqft/hr | High Speed: 480x360 dpi, 2,800 Sqft/hr | High Speed: 480x360 dpi, 2,600 Sqft/hr |
| Standard Speed: 480x540 dpi, 1,500 Sqft/hr | Standard Speed: 480x540 dpi, 2,100 Sqft/hr | Standard Speed: 480x540 dpi, 1,820 Sqft/hr | |
| High Quality Speed: 480x720 dpi, 1,000 Sqft/hr | High Quality Speed: 480x720 dpi, 1,400 Sqft/hr | High Quality Speed: 480x720 dpi, 1,300 Sqft/hr | |
| Ink Type | Solvent Ink | ||
| Colour | KCMY | ||
| Ink Supply System | Auto consistent ink supply, ink detective, failure notice | ||
| Cleaning Method | Single color positive flush (with pressure) | ||
| RIP Software | Maintop (PhotoPrint optional) | ||
| Interface | USB 2.0 | ||
| Media Type | Banner, Vinyl, Outdoor materials (Photo Paper / PP / Backlit Film) | ||
| Auto Feeding | Media detective via infrared, memorial flex-feed & take-up system | ||
| Heating System | Preheating, middle heating, front heating, front drying fans and infrared heaters | ||
| Carriage Height | 2mm - 5mm distance to printing platform, adjustable | ||
| Power | AC220V 50/60Hz | ||
| Working Environment | Temperature 22°C - 28°C, Humidity 40% - 70% RH | ||
| Applications | Outdoor Advertising, Flex Printing, Sign Boards, Vinyl Printing, Backlit Film Printing, Vehicle Graphics, Retail Branding, Exhibition Graphics | ||
