Ceramic Printer D740-10 | Digital Ceramic Printing Machine & Wide Format Printer
Product Description
Ceramic Printer D740-10
The Ceramic Printer D740-10 is a popular, economical 10-color digital ceramic tile printer built for industrial ceramic printing on tiles, décor surfaces, and high-volume decorative production. As dedicated digital printing equipment, it combines SEIKO RC1536 printheads with 10 ink channels to deliver rich colour, stable ink laydown, and consistent image quality across every tile run. For factories and growing print shops, this ceramic printing machine is a proven upgrade from traditional screen-based workflows to true digital print on demand ceramic production.
With a printing area of 740mm × 1200mm, a belt size of 745mm, and 360 DPI native resolution, the D740-10 operates as a capable wide format printer and large format printer for ceramic substrates. Its adjustable drop size of 14~98pl (expandable to 13~133pl) and 37 kHz firing frequency give operators fine control over detail, soft tonal transitions, and heavier ink coverage for glaze-effect and cover inks. Available in 740mm and 1170mm width options (D740-10 / D1170-10), this ceramic printer scales from mid-format to full large format ceramic production.
Beyond tile plants, the D740-10 fits businesses expanding into industrial decoration — from ceramic décor studios to a small printing business moving into specialty substrates. While purpose-built for ceramic printing, its wide-format digital architecture complements shops already running flex printing, flex printing machines, or a printer for vinyl signage line. Powered by 380V three-phase supply with industrial compressed-air support, it is engineered for continuous, high-duty ceramic inkjet production.
Key Advantages of Ceramic Printer D740-10
✔ SEIKO RC1536 Printheads
Industrial recirculation printheads built for ceramic inkjet inks — delivering stable jetting, high productivity, and reliable ceramic printing quality.
✔ 10-Colour Channel System
Maximum 10 channels support extended colour, special effects, and economical 10-colour digital ceramic tile printing for richer designs.
✔ Wide & Large Format Output
740×1200mm print area on the D740-10 (up to 1170×1800mm on D1170-10) for wide format and large format ceramic tile production.
✔ Adjustable Drop Size
Drop size of 14~98pl, adjustable to 13~133pl, enables fine detail, smooth gradients, and heavier ink density when required.
✔ High-Speed 37 kHz Firing
37 kHz firing frequency with 360 DPI native resolution supports fast, consistent digital ceramic printing on industrial production lines.
✔ Print-on-Demand Flexibility
Digital workflow enables short-run and print on demand ceramic designs without screens — ideal for custom tiles and growing print businesses.

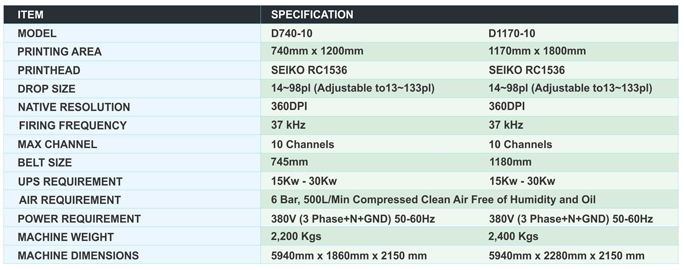

Ceramic Printer D740-10 / D1170-10 Technical Specifications
| Model | D740-10 / D1170-10 |
|---|---|
| Printing Area | 740mm × 1200mm (D740-10) / 1170mm × 1800mm (D1170-10) |
| Printhead | SEIKO RC1536 |
| Drop Size | 14~98pl (Adjustable to 13~133pl) |
| Native Resolution | 360 DPI |
| Firing Frequency | 37 kHz |
| Max. Channels | 10 Channels |
| Belt Size | 745mm (D740-10) / 1180mm (D1170-10) |
| UPS Requirement | 15 kW – 30 kW |
| Air Requirement | 6 Bar, 500 L/Min Compressed Clean Air (Free of Humidity and Oil) |
| Power Requirement | 380V (3 Phase + Neutral + Ground) 50–60Hz |
| Machine Weight | 2,200 kg (D740-10) / 2,400 kg (D1170-10) |
| Machine Dimensions | 5940 × 1860 × 2150 mm (D740-10) / 5940 × 2280 × 2150 mm (D1170-10) |
| Technology | Digital Ceramic Inkjet Printing System |
| Applications | Ceramic Tile Printing, Decorative Ceramic Surfaces, Print on Demand Tiles, Industrial Ceramic Decoration, Wide Format & Large Format Ceramic Production |
*Printing area, belt size, machine weight, and dimensions vary by model (D740-10 / D1170-10); all other specifications are shared across both models. Specifications as per product datasheet.
Ceramic Printer D740-10 Compatible Materials & Applications
| Material / Use Case | Applications |
|---|---|
| Ceramic Tiles | Wall tiles, floor tiles, décor tiles, patterned ceramic surfaces, digital ceramic printing |
| Decorative Ceramic Surfaces | Custom motifs, marble effects, wood effects, artistic ceramic designs |
| Print on Demand Production | Short-run custom tiles, sample batches, personalised ceramic designs without screens |
| Industrial Ceramic Lines | High-volume ceramic tile decoration for factories and continuous production plants |
| Wide / Large Format Graphics | Large ceramic panels and wide format decorative surfaces for commercial interiors |
| Growing Print Businesses | Suitable for ceramic specialists and small printing businesses expanding into industrial digital substrates |
| Related Digital Print Workflows | Complements shops already running flex printing, flex printing machines, and printer for vinyl signage lines |
