Product Description

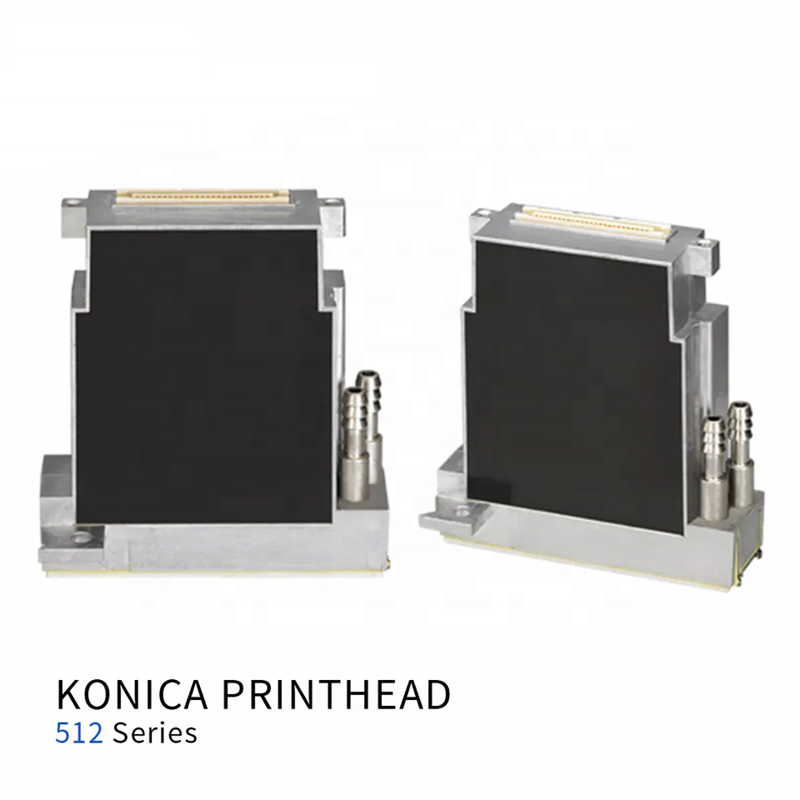

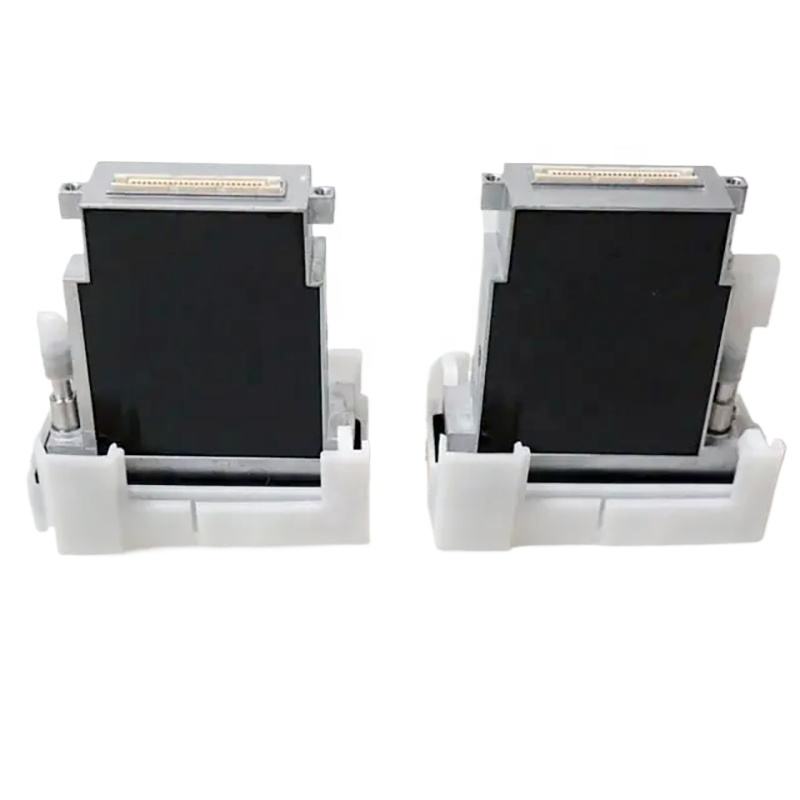

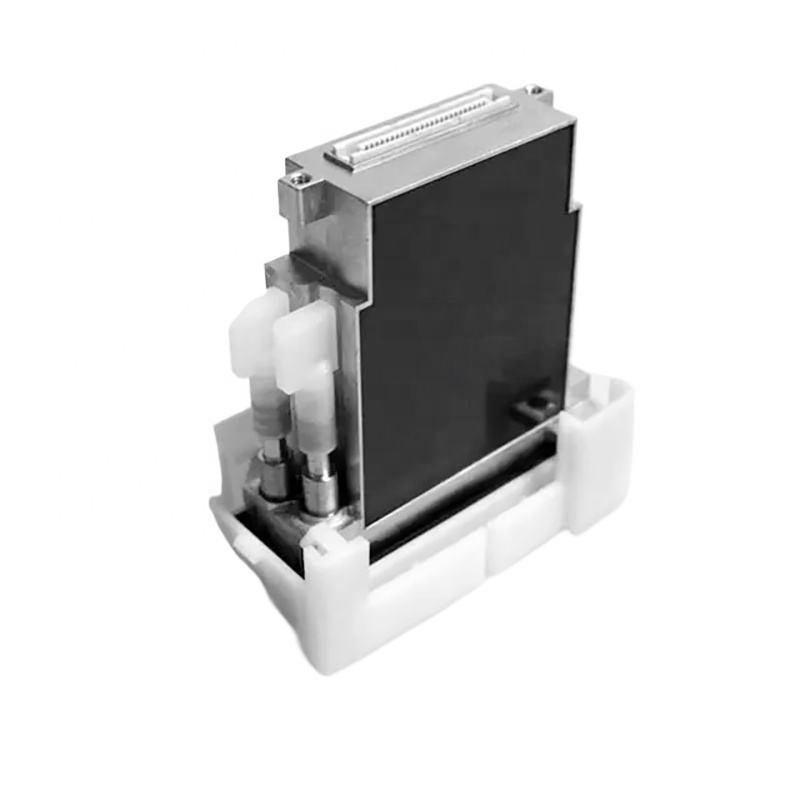

Konica KM512 Printhead Series
The Konica KM512 Printhead Series is a reliable and long-lasting solution designed for large-format inkjet printers. Known for its durability and stable performance, this Konica Minolta printhead series is widely used in professional and industrial printing environments, and is available in five variants — KM512 MN, KM512 LN, KM512 LNX-35, KM512 LH, and KM512 MH — to match different droplet size, ink, and heating requirements.
Built with advanced piezo on-demand technology, the Konica Minolta KM512 Printhead Series delivers consistent ink jetting and high-quality output across extended production cycles. Its robust construction ensures dependable operation even under heavy-duty printing conditions. This large-format printhead is ideal for high-volume industrial applications and supports a wide range of special inks, including UV printhead, solvent printhead, and oil based ink printhead requirements. This versatility makes it suitable for signage printing, packaging printing, textile printhead applications, and other demanding print jobs across brands like Agfa, Canon Océ, HP Designjet, Oki, and more.
Key Features of Konica KM512 Printhead Series
✔ Advanced Piezo On-Demand Technology
Shear mode piezo actuation gives precise and consistent ink jetting with lower power consumption and high-density nozzle layout.
✔ High Durability & Long Operational Life
Built for industrial printing environments, with a robust nozzle plate designed to resist scratching over long production cycles.
✔ Supports UV, Solvent & Oil-Based Inks
Wide ink compatibility, including aggressive solvent inks used in super-wide format printing, for versatile printing applications.
✔ Ideal for Large-Format, High-Volume Printers
512 nozzles spaced at 360 npi in a compact printhead footprint, suited to page-width and multi-head configurations.
✔ Stable Continuous & Heavy-Duty Performance
Delivers reliable output during long, continuous print runs without sacrificing image quality.
✔ Wide Industrial & Commercial Compatibility
Compatible with a broad range of printer brands and models across signage, packaging, and industrial graphics production.
Konica KM512 Printhead Specifications
| Model | KM512 MN | KM512 LN | KM512 LNX-35 | KM512 LH | KM512 MH |
|---|---|---|---|---|---|
| Technology | On-Demand Piezo Electric | ||||
| Printing Mode | Binary & 4-Level Grayscale | Binary Only | Binary Only | Binary Only | Binary & 4-Level Grayscale |
| Native Resolution | 360 dpi | ||||
| Droplet Size | 14 pl | 42 pl | 35 pl | 42 pl | 14 pl |
| Max Drops (Grayscale) | 3 Drops | – | – | – | 3 Drops |
| Total Nozzles | 512 (256 x 2) | ||||
| Nozzle Spacing | 70.5 microns | ||||
| Print Width | 36.1 mm | ||||
| Firing Frequency | 12.8 kHz | 7.6 kHz | 10 kHz | 7.6 kHz | 12.8 kHz |
| Ink Compatibility | Oil, Solvent, UV | Oil, Solvent, UV | Solvent | Oil, Solvent, UV | Oil, Solvent, UV |
| Integrated Heater | No | No | No | Yes (Up to 55°C) | Yes (Up to 55°C) |
| Alternate Name | KM512 MNX | KM512 LNX | KM512 LNX-35 | KM512 LHX | KM512 MHX |
Konica KM512 Printhead Compatible Printer Models
| Brand | Compatible Printer Models |
|---|---|
| Agfa | Anapurna M, M4f, Mv, Mw |
| Allwin | C8 |
| Anhui Liyu | Maxima PZ3204-KM, PZ3206-KM |
| Canon Océ | CS6060, CS6100 |
| DGI | OrionJet OR-1806, SaturnJet ST-1806 |
| Dilli | Neo Titan UVT-1606S, UVT-1606W |
| DYSS Apollo | PTP18/3202-KC, PTP18/3204-KC, PTP18/3206-KC, PTP1804-KL, PTP1806-KL, PTP1808-KL, PTP3204-KL, PTP3204-KM, PTP3206-KL, PTP3208-KL, PTR3204-KL |
| Flora | HJ 3200 Turbo |
| HP Designjet | 9000s, 10000s |
| Icontek | 3306 |
| JHF | Vista H8 3304FN, Vista H8 3306FNS |
| Myjet | LB3208KM42, LE3208KM42, WB3208KM42, WC3208KM14 |
| Oki | ColorPainter 64S, ColorPainter 100S |
| Rodin | K4320-A, K4320-B, K6164-B, K8320-B |
| Skynet | HS-Series, PC-Series |
| Sun Innovations | Neo Da Vinci |
| Taimes | T5, T7 |
