Product Description

Epson U1 inkjet printhead (i3200-U1 / i1600-U1) with PrecisionCore MicroTFP technology, up to 600 dpi resolution & UV / Eco-Solvent ink support. A durable epson print head for industrial and packaging printing.

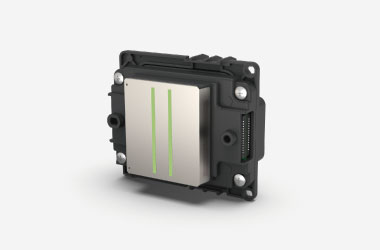

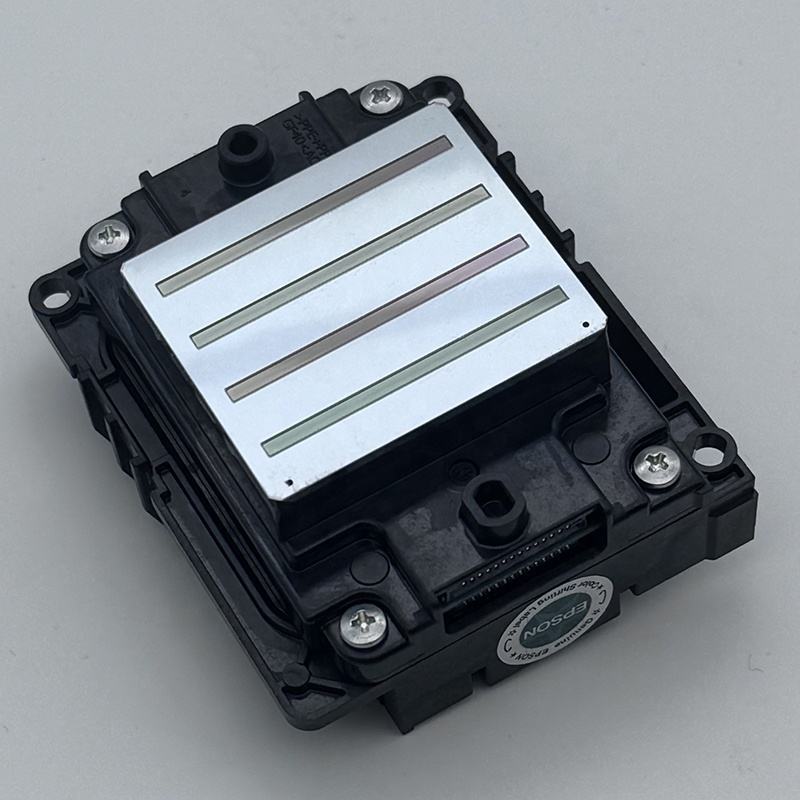

Epson U1 Inkjet Printhead

High-Performance PrecisionCore Printhead for Industrial and Packaging Printing

The Epson U1 inkjet printhead is a high-performance industrial printhead designed for high-speed and high-precision inkjet printing. Built with Epson's latest PrecisionCore MicroTFP technology, this epson print head delivers stable ink droplet ejection, high image resolution, and long operational life, making it ideal for demanding industrial and packaging printing applications.

Key Features of the Epson U1 Printhead

✔ PrecisionCore Technology

Advanced MEMS processing and thin-film piezo technology enable high nozzle density, compact printhead design, and precise placement of ink droplets on the media.

✔ High-Resolution Printing

Supports printing up to 600 dpi per colour, producing clear text, fine lines, and detailed graphics suitable for industrial and commercial printing.

✔ Grayscale Printing Capability

Epson's Variable Sized Droplet Technology (VSDT) allows multi-level grayscale printing, delivering smooth gradients and enhanced image depth.

✔ Industrial-Grade Reliability

Designed for continuous operation, the Epson U1 printhead is tested for reliability and long service life in demanding industrial printing environments.

✔ Stable Ink Droplet Ejection

Optimized ink flow paths ensure stable droplet ejection and consistent print quality, even during high-speed printing operations.

✔ UV & Eco-Solvent Ink Compatible

Compatible with UV and eco-solvent inks, giving this epson print head flexibility across different industrial and packaging print applications.

Epson U1 Technical Specifications

Specification	Epson i3200-U1	Epson i1600-U1
Product Type	PrecisionCore MicroTFP Inkjet Printhead
Ink Type	UV / Eco-Solvent	UV / Eco-Solvent
Number of Nozzles	3200	1600
Nozzle Rows	8 Rows	4 Rows
Nozzle Pitch	1/300 inch	1/300 inch
Nozzle Resolution	300 npi / row 600 npi / 2 rows	300 npi / row 600 npi / 2 rows
Max Colors Supported	4 Colors	4 Colors
Effective Print Width	33.8 mm (1.33 inches)	33.8 mm (1.33 inches)
Droplet Control	Grayscale Supported	Grayscale Supported
Weight	Approx. 80 g	Approx. 80 g
Dimensions (W × D × H)	69.1 × 59.5 × 35.6 mm	69.1 × 59.5 × 35.6 mm
Ink Recirculation	Not Available	Not Available
Internal Heater	Not Available	Not Available
Applications	Industrial Inkjet Printing, Packaging Printing, Commercial Printing, UV Printing Systems, Eco-Solvent Printing Systems

Epson U1 Printhead FAQ

The Epson U1 inkjet printhead is used in industrial inkjet printing, packaging printing, commercial printing, and UV or eco-solvent printing systems that need stable, high-precision output.

The i3200-U1 has 3200 nozzles across 8 rows, while the i1600-U1 has 1600 nozzles across 4 rows. Both share the same nozzle pitch, resolution, print width, and dimensions, so the i3200-U1 suits higher output needs while the i1600-U1 suits smaller or more compact printhead configurations.

Both the i3200-U1 and i1600-U1 versions of the Epson U1 printhead support UV and eco-solvent inks, making this epson print head suitable for a range of industrial and packaging applications.

Yes, the Epson U1 uses Variable Sized Droplet Technology (VSDT) to support multi-level grayscale printing, giving smoother gradients and greater image depth.

The Epson U1 combines PrecisionCore MicroTFP technology, up to 600 dpi resolution, grayscale droplet control, and stable ink ejection in a compact, industrial-grade design. As a reliable inkjet printhead available in i3200-U1 and i1600-U1 configurations, it delivers consistent, high-precision output for industrial and packaging printing systems.
