Product Description

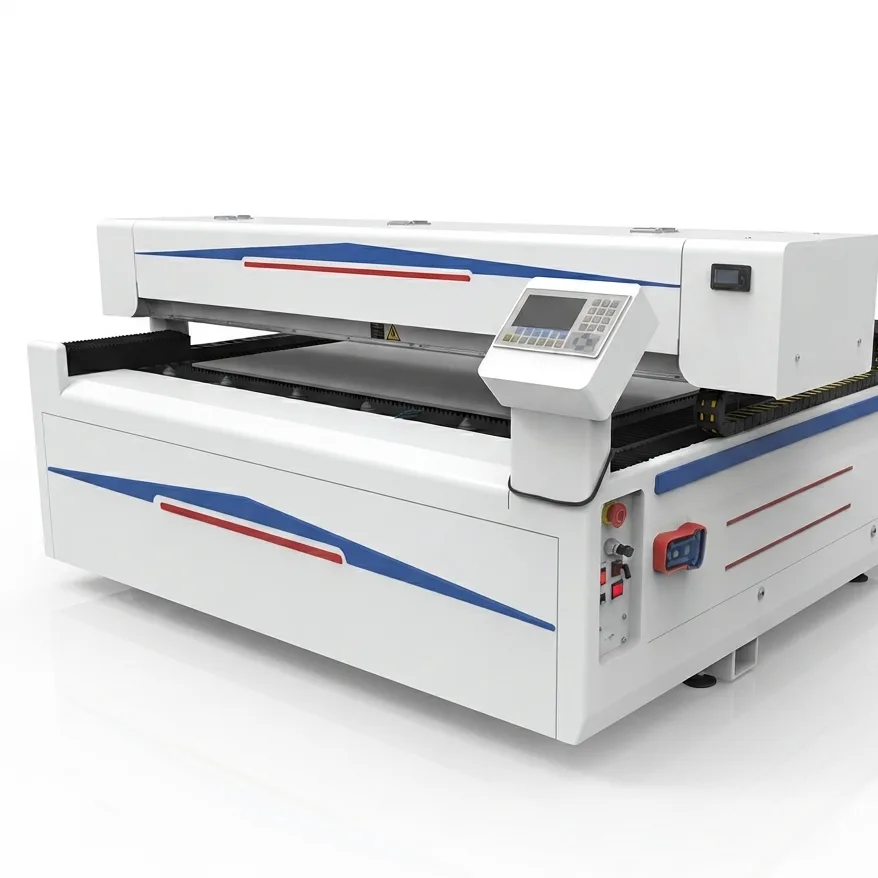

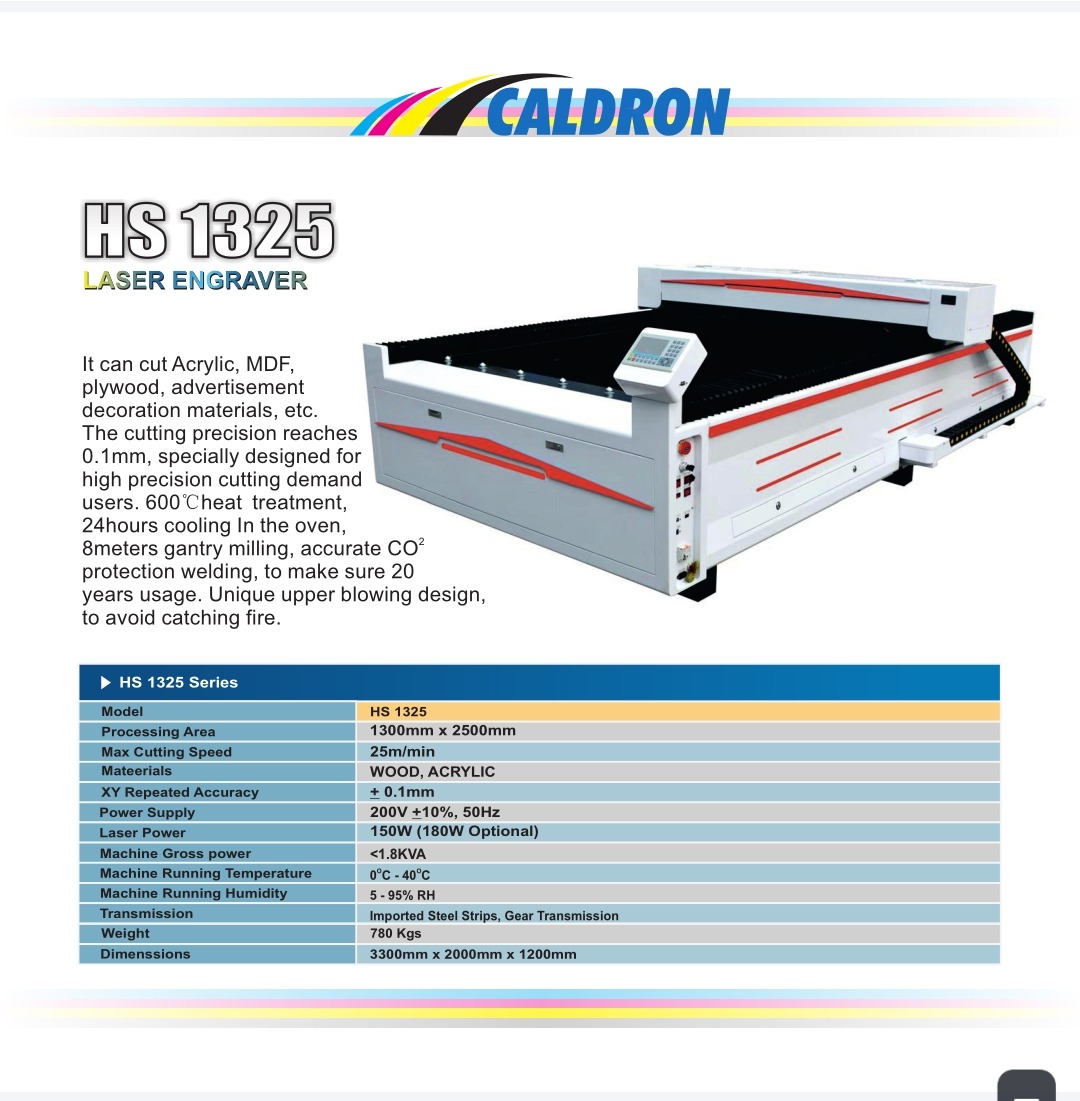

CALDRON HS 1325 Laser Engraver
The CALDRON HS 1325 is a wood and acrylic laser cutting machine that cuts acrylic, MDF, plywood, and advertisement decoration materials with cutting precision reaching 0.1mm — specially designed for high-precision cutting demand users. Built with 600°C heat-treated, 24-hour oven-cooled steel, 8-metre gantry milling, and accurate CO2-protection welding, this laser engraver is engineered for up to 20 years of usage, with a unique upper blowing design to help avoid catching fire.
Key Features
✔ 0.1mm Cutting Precision
Designed for high-precision cutting demand users working with acrylic and wood.
✔ Built for 20 Years of Usage
600°C heat-treated, 24-hour oven-cooled frame with accurate CO2-protection welding for long-term durability.
✔ 8-Metre Gantry Milling
Precision gantry construction with imported steel strips and gear transmission for accurate, stable movement.
✔ Fire-Safety Blowing Design
A unique upper blowing design helps avoid catching fire during cutting operations.
Specifications
| Model | HS 1325 |
|---|---|
| Processing Area | 1300mm x 2500mm |
| Max Cutting Speed | 25 m/min |
| Materials | Wood, Acrylic |
| XY Repeated Accuracy | ± 0.1mm |
| Power Supply | 200V ±10%, 50Hz |
| Laser Power | 150W (180W Optional) |
| Machine Gross Power | < 1.8 KVA |
| Running Temp / Humidity | 0°C - 40°C / 5% - 95% RH |
| Transmission | Imported Steel Strips, Gear Transmission |
| Weight | 780 Kgs |
| Dimensions | 3300mm x 2000mm x 1200mm |
