Product Description

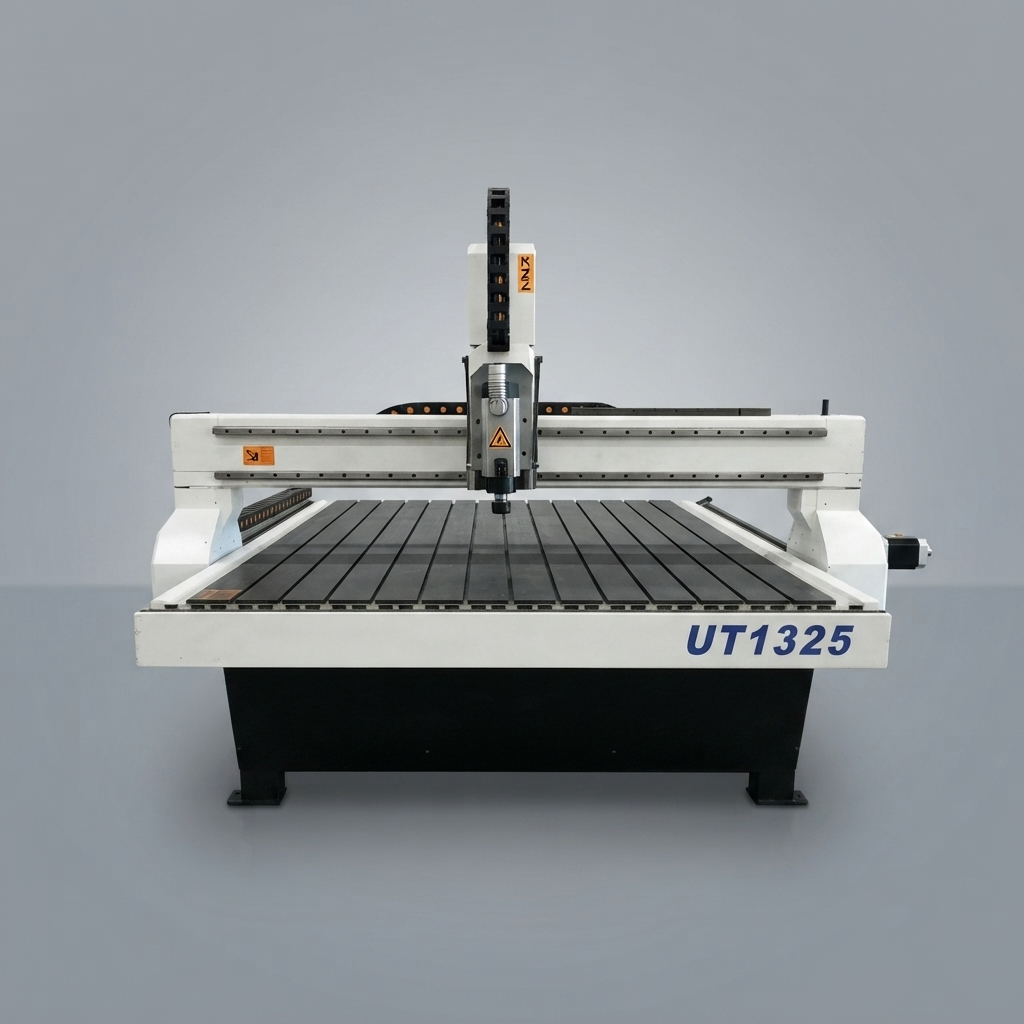

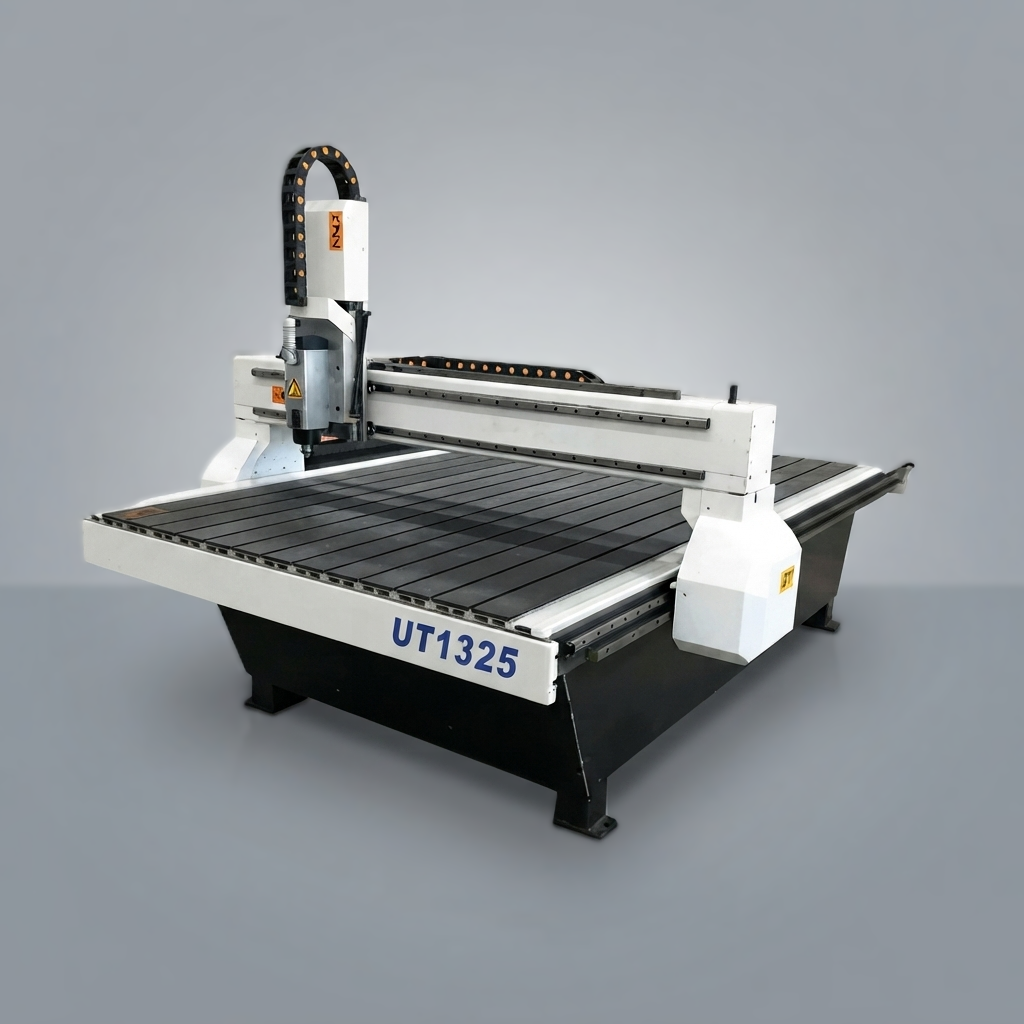

CNC Router Engraver UT1325F
The UT1325F is a heavy-duty CNC router engraver built with a cutting table size of 1300mm x 2500mm, designed for precision routing, engraving, and cutting across wood, acrylic, and panel materials. Powered by a 5.6Kw Italy ELTE spindle running at 24000 RPM, this CNC router machine delivers the speed and stability needed for demanding production environments.
Built with a T-slot table, rack and pinion drive on the XY axis, a ball screw Z-axis, and linear guides throughout, the UT1325F CNC router offers accurate, repeatable motion control via its DSP remote control system. With max processing speeds up to 12000mm/min and a choice of stepper or servo motors, it is a dependable CNC router engraver for signage, furniture, and general panel processing businesses.
Key Features of CNC Router Engraver UT1325F
✔ Large 1300 x 2500mm Working Area
A spacious T-slot table cutting size supports large panels, sheets, and full-size boards.
✔ 5.6Kw Italy ELTE Spindle
A high-power 24000 RPM spindle delivers fast, clean cutting and engraving across a range of materials.
✔ Rack & Pinion + Ball Screw Drive
Rack and pinion drive on the XY axis with a ball screw Z-axis for precise, stable motion control.
✔ DSP Remote Control System
DSP handheld controller allows convenient remote operation, program selection, and parameter adjustment.
✔ Choice of Stepper or Servo Motors
Select stepper or servo motor configurations to match your budget and precision requirements.
✔ High-Speed Processing
Max processing speed of up to 12000mm/min for efficient, high-throughput production.
CNC Router Engraver UT1325F Specifications
| Model | UT1325F CNC Router |
|---|---|
| Table | T-Slot Table |
| Working Size | 1300mm x 2500mm |
| Height | 150mm |
| Spindle | 5.6Kw Italy ELTE Spindle (24000 RPM) |
| Motor | Stepper or Servo Motors |
| Max Tool Diameter | 6mm; ER20 Collet |
| Transmission System | Rack & Pinion in XY Axis, Ball Screw Z Axis |
| Guide | Linear Guide |
| Controller | DSP Remote Control |
| Max Processing Speed | 12000mm/min |
| Voltage | 380V / 50Hz |
| Weight | 1100 Kgs |
| Overall Dimensions | 3000mm x 1950mm x 1600mm |
